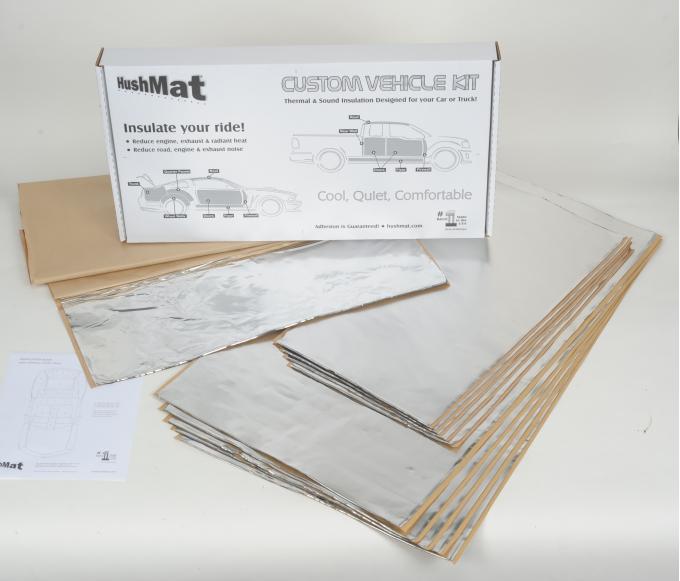

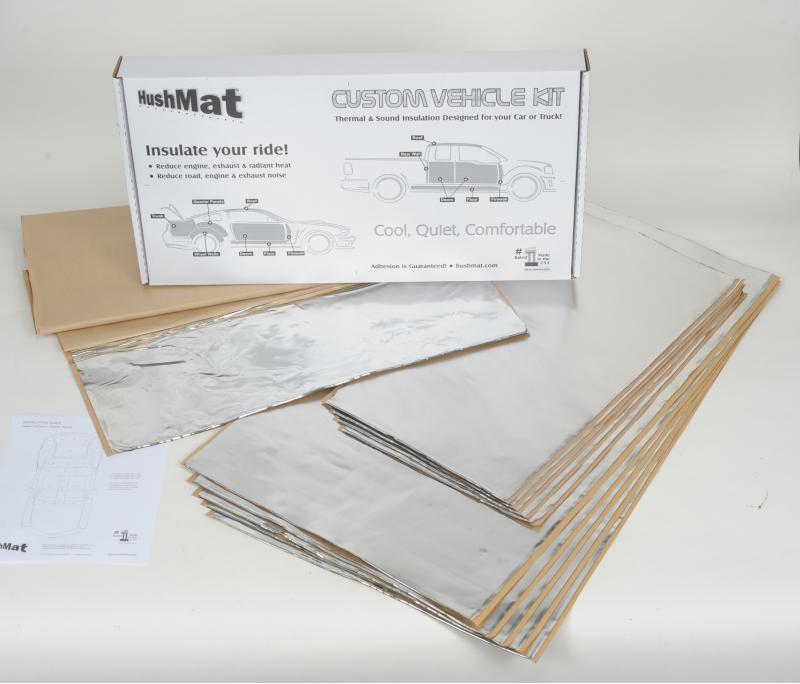

Hushmat Complete Year, Make and Model Vehicle Insulation kit covers 100 percent of the area of your vehicles firewall, floor, doors, roof and trunk. HushMat has determined the exact amount of material required for your vehicle.
Reduce that aftermarket engine, exhaust drone, road noise, vibration and the noise that disrupts your ride and reduce the heat that comes from engine, headers, exhaust and catalytic converter with one USA Made material, light weight HushMat Ultra.
Utility, workload and convenience are earmarks of the Pick Up styling. Most Pick Ups have inadequate sound and thermal insulating material built into them at the factory. You can reduce interior noise and heat in your Pick Up with one material. HushMat sound deadening and thermal insulation enhances the experience with the easiest to install sound deadening material. Your Pick Up is fun to drive, but in the summer it gets hot. If you use your light truck for work you are constantly in and out of it. There is over 200 degrees of heat cooking your firewall and floor pan. Your engine, headers, manifold and exhaust generate tremendous heat that transfers to the metal firewall and floor and this heats up your Pick Up interior. It can create a very uncomfortable ride, especially in the summer. This also forces your AC system to work harder. HushMat automotive insulation is the solution to REDUCE thermal transfer into your interior. HushMat is proven in an independent study to lower this temperature by over 40 percent. When you drive on the highway at approximately 65 miles per hour the interior of your Pick Up is approaching 80 to 90 decibels of noise. That is like placing a vacuum cleaner or garbage disposal running on your passenger seat. When you drive on the highway and then exit. At the end of the exit ramp the first thing you do is turn down your radio or music because it was too loud. HushMat sound deadening mat leads the automotive sound deadening industry in ease of installation. Hushmat is packaged specifically for your Pick Up to provide 100 percent insulation coverage, there are no holes in the material and no puzzle pieces to put together. Simply apply the HushMat material as shown in the Installation Guide to provide the car sound deadening and auto heat shield you deserve. Treat your firewall, doors, floor, tunnel, rear wheel wells, trunk floor and roof with this complete kit.
| Download Name | File Size |
| HushMat Ultra Specification Sheet.pdf | 149.54KB |
| HushMat_Ultra 200-400-800 Hz Graph SAEJ1637.pdf | 23.13KB |
| HushMat_Sell Sheet_CustomVehicleKit_FINAL.pdf | 1.07MB |
| Hushmat Install Guide 1932 Ford Coupe.pdf | 1.85MB |
| Damping Pad MSDS.pdf | 26.43KB |
| Make | Model | Years |
| Chevrolet | El Camino | 1959 - 1960 |
| Cold Flexibility | Can be bent around 25 mm. mandrel at -30 degrees C with no cracking or loss of adhesion |
| Color | Polymer - Black; Backing - Silver |
| Flammability | Tested per FMVSS 302, HushMat Ultra is self-extinguishing and meets all aspects of the standard |
| Hardness | 6.5 - 9.0mm ?ASTM D-5 |
| Part Type | Thermal Acoustic Insulation |
| Peel Strength | Tested in 90 degree peel at a crosshead speed of 300mm per minute on a 25 mm wide test specimen. Average load in Newtons is reported. |
| R-Value | 7 |
| Safety | HushMat Ultra is not considered a hazardous material. Care should be used in handling to avoid cuts from the foil. Gloves are recommended. The Material Safety Data Sheet is available upon request and should be read and understood before using this product. |
| Shelf Life | At least 6 months when stored at 40 degrees C or less |
| Specific Gravity | 1.47 (approx. 0.47 pounds per square foot) |
| Temperature Resistance | HUSHMAT ULTRA will withstand a bake of 1 hour at 240 degrees C with no deformation, sag, or flow when baked in horizontal, vertical or inverted positions. |
| Thickness | 1.5mm |
| Warranty | Seller warrants marketable title to the Product, free and clear of all liens and encumbrances. Seller makes no other express or implied warranties beyond that stated on quoted product, statutory or otherwise. |
